NAUTILUS

Exquisite Design and Superior Craftsmanship

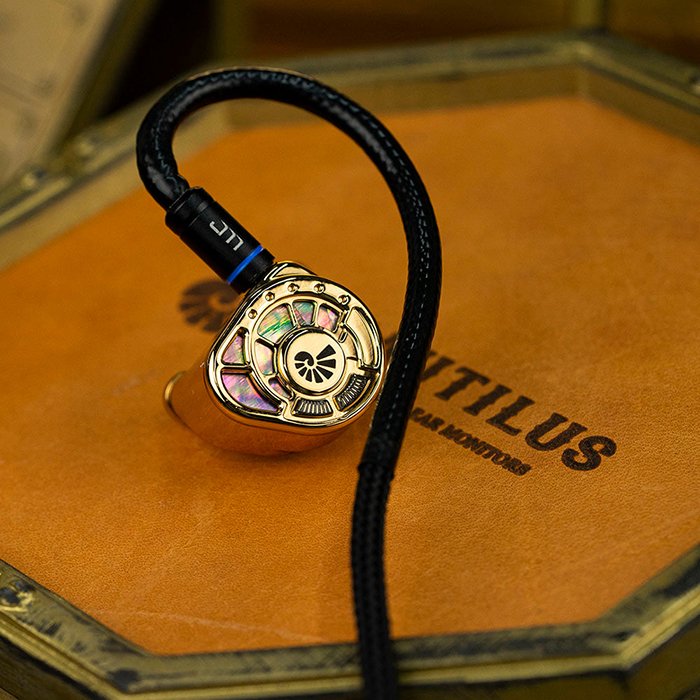

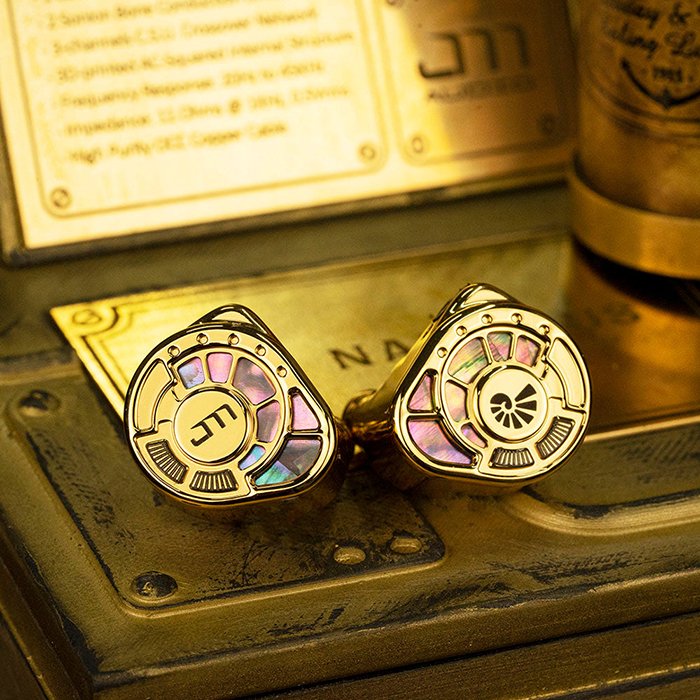

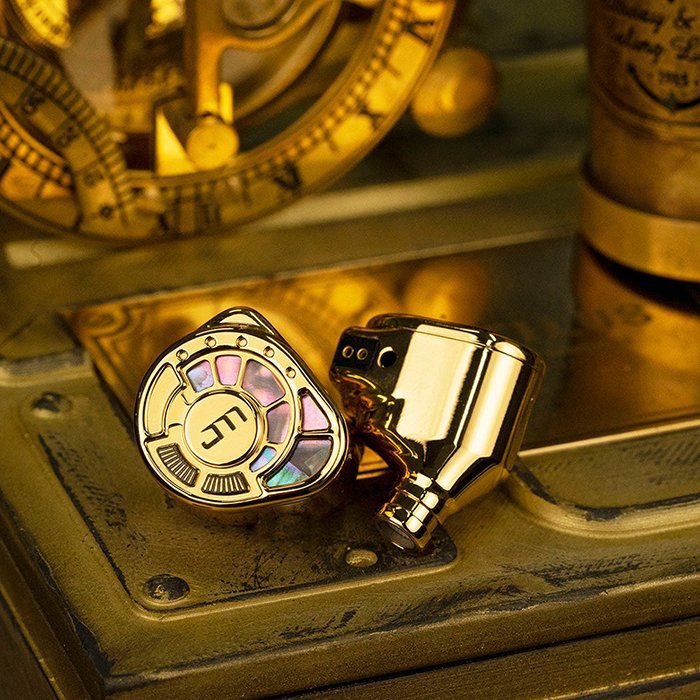

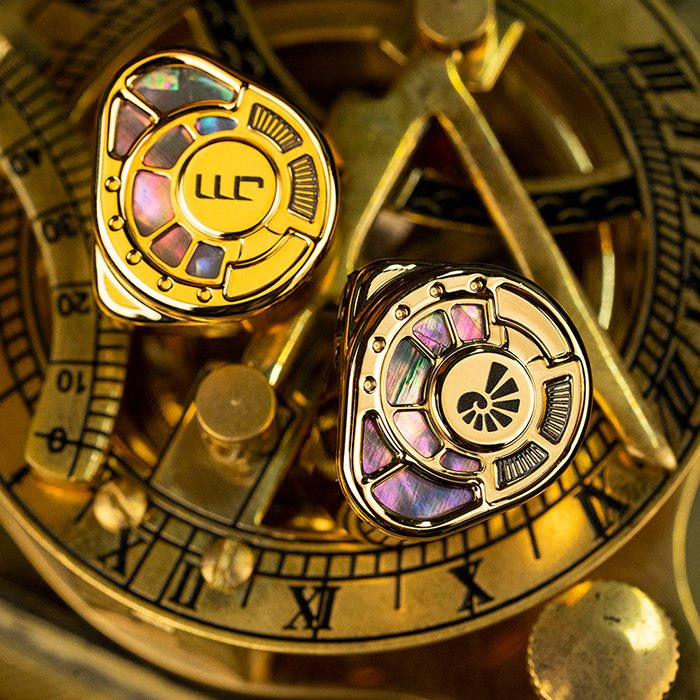

The Nautilus features a stunning gold-plated brass shell, adorned with natural mother-of-pearl inlays, exuding elegance and sophistication. Its compact size ensures a comfortable and secure fit for a wide range of ear shapes and sizes, making it ideal for prolonged listening sessions.

Inspiration Behind the Design

The Nautilus draws its design inspiration from the steampunk aesthetic, heavily influenced by the illustrations in the novel “20,000 Leagues Under the Sea.” Our design team conducted extensive research on steampunk art and literature to create a product that embodies the essence of this unique style. The brass elements throughout the design are reminiscent of the legendary steampunk submarine, the Nautilus. The mother-of-pearl inlays symbolize the mysterious beauty of the deep sea, while the faceplate design evokes the feeling of sitting in the submarine’s control room, peering out through its large glass windows. This intricate design not only enhances the visual appeal but also immerses users in a rich, imaginative world.

Innovative Driver Configuration for Superior Sound Quality

At the heart of the Nautilus lies a sophisticated driver setup that delivers an extraordinary audio experience:

• 6mm Planar Driverfor pristine high frequencies, ensuring every detail is captured with clarity.
• 10mm Dynamic Driver with Nanodiamond Coated DLC Diaphragmfor full-range audio. The Diamond-Like Carbon (DLC) coating offers superior rigidity and lightweight properties, resulting in reduced distortion and enhanced sound clarity.
• Two Bone Conduction Driversfrom Sonion for mid-range texture rendering, enhancing the richness and depth of the audio.

These drivers are housed within a 3D printed Asymmetrical Co-axial Acoustic Chamber (AC-Squared). The planar driver is positioned in front of the dynamic driver, with a front-firing sound bore connected via a 3D printed waveguide. This innovative co-axial configuration, along with the asymmetrical acoustic chamber, provides optimal resonance across different frequency ranges, resulting in a well-balanced and natural sound signature.

Exceptional Sound Signature

The Nautilus delivers a sound signature characterized by:

• Punchy and Deep Bassthat provides a solid foundation for all genres of music.
• Emotionally Expressive Vocalsthat simulate the presence of the singer right in front of the listener.
• Detailed and Smooth High Frequencieswith plenty of air and sparkle, capturing the nuances of every note.

High-Quality Cable Included

The Nautilus comes equipped with a newly designed, hand-braided copper cable. Made with high-purity OCC copper wire and terminated with a gold-plated OFC 4.4mm balanced plug, this cable ensures optimal signal transmission and durability, further enhancing the listening experience.

Specifications (Nautilus IEM):

• CNC Gold-plated Brass Shell with Natural Mother-of-pearl Inlay
• 1 Custom 10mm Nanodiamond Coated DLC Diaphragm Dynamic Driver
• 1 Custom 6mm Planar Driver Units
• 1 Sonion Bone Conduction Driver Unit
• 3-Channels C.S.U. (CrossSync Uniphase) Crossover Network
• 3D printed AC-Squared (Asymmetrical Co-axial Acoustic Chamber) Internal Structure
• 0.78mm Brass Gold-plated 2-pin Sockets
• Frequency Response Range: 20Hz ~ 45KHz
• Impedance: 11 ohms @ 1Khz 0.5Vrms

Specifications  of cable

• 4 strands of selected premium 21 AWG OCC Copper Wire
• High-precision CNC-machined solid metal components
• Gold-plated OFC high-end 4.4mm plug
