DENAFRIPS Ares 15th

SKU: ARIES2 Categories: ,

RM2,500.00

The DENAFRIPS Ares 15th Anniversary Edition is a discrete R-2R ladder DAC that serves as the entry-level model in the company’s product lineup. It builds upon the original Ares and Ares II models, incorporating technical and cosmetic refinements aimed at improving performance and compatibility.


Technical Specifications:

  • DAC Type: R-2R (resistor ladder), fully discrete design

  • Architecture: True balanced, dual-DSP, dual R-2R network

  • Supported Formats:

    • PCM: Up to 24-bit / 1536kHz

    • DSD: Native DSD up to DSD1024 (USB and I²S inputs only)

  • Digital Inputs:

    • USB (STM32F446 advanced USB module)

    • Optical (TOSLINK)

    • Coaxial (RCA)

    • AES/EBU (XLR)

    • I²S (HDMI, non-universal pinout)

  • Analog Outputs:

    • RCA (single-ended)

    • XLR (balanced)

  • Clocking:

    • Upgraded low-jitter crystal oscillators

  • Oversampling Modes:

    • Selectable Oversampling (OS) and Non-Oversampling (NOS)

  • Power Supply:

    • Linear power supply with O-core transformer

    • Independent regulation for analog and digital sections


Notable 15th Anniversary Edition Changes:

  • New USB module supporting higher sample rates and DSD1024

  • Enhanced FPGA firmware with refined digital processing

  • Improved clocks and jitter reduction

  • Minor adjustments to layout and shielding

  • Updated faceplate design with 15th Anniversary badge


Physical Specifications:

  • Chassis: Aluminum (CNC-machined)

  • Dimensions: Approx. 215mm (W) x 230mm (D) x 45mm (H)

  • Weight: Approx. 3.5 kg

Description

ARES 15TH

ARES 15TH

ARES 15TH
ARES 15TH

The ARES15th redefines the  DAC standard with its remarkable performance enhancement

The ARES15th utilizes cutting-edge audio technology and precision craftsmanship to achieve a level of audio quality that far surpasses its peers. Whether it’s the deep, powerful bass, the smooth and detailed mids, or the clear and transparent highs, every audio detail is perfectly reproduced, delivering an unforgettable listening experience.ARES 15TH

The Ares 15th has been enhanced with an anodized aluminum chassis, now offered in both silver and black colors.

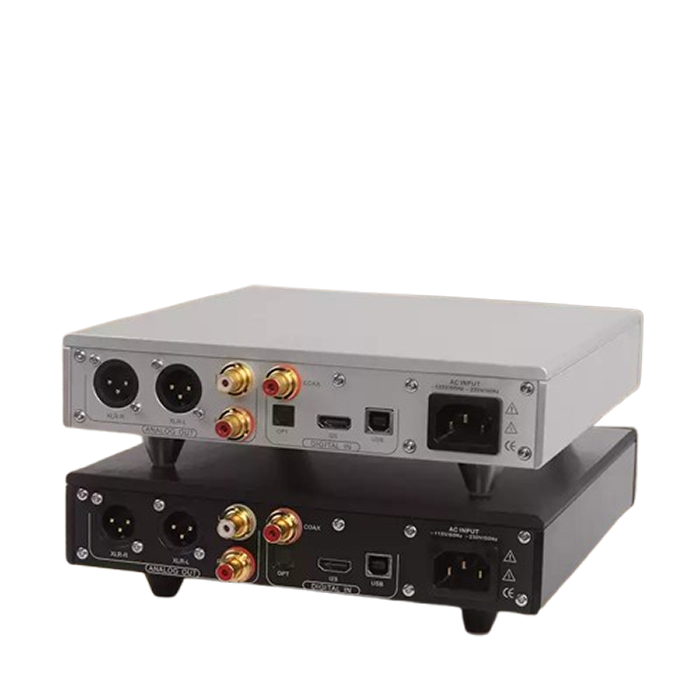

This highly desired option fulfills the preferences of potential customers who seek a DAC in a compact form factor, particularly with a silver color choice. Building upon the immense popularity of its predecessor, the Ares 15th further elevates the already impressive build quality of the Ares 15th.微信图片_20240704164520.pngIn its compact 2.4 to 2.5-liter size, the ARES15th features a comprehensive range of connectivity options, including USB, optical, and coaxial inputs and outputs. Regardless of your audio equipment needs, the ARES15th connects effortlessly, accommodating various usage scenarios.6.png

Adopt a Low Phase
Noise Oscillator

Equipped with a low-phase-noise oscillator, the ARES15th ensures exceptional signal stability and an ultra-high signal-to-noise ratio. This innovation not only enhances the clarity and detail of the sound but also effectively reduces noise and distortion within the system, providing robust support for the audio experience.7.png

Optimize the chip driver


Add infrared remote control receiver


The Ares 15th features an upgraded Linear Power Supply section, incorporating a capacitors bank branded with ‘DENAFRIPS’, OEM in accordance to DENAFRIPS specification for audio. On top of the constant current LDO Linear Regulators, a large heatsink is securely attached. To power the FPGA, modular USB module, and balanced R-2R Ladder Networks, eight multi-stage LDO Linear Regulators are employed.

DENAFRIPS meticulously hand-winds the oversized O-Core transformer in-house, incorporating multiple layers of copper shielding between the windings. This design choice effectively reduces electromagnetic interference (EMI) and electromagnetic fields (EMF).

R-2R DAC for MUSIC LOVER

Priced under $1500, the ARES15th offers the best value for a mid-end DAC. Its exceptional performance in audio quality, functionality, and design provides users with an outstanding purchase experience. Whether you’re an audiophile or a professional audio engineer, the ARES15th is the ideal choice you can trust.

Brand

Brand

Denafrips
